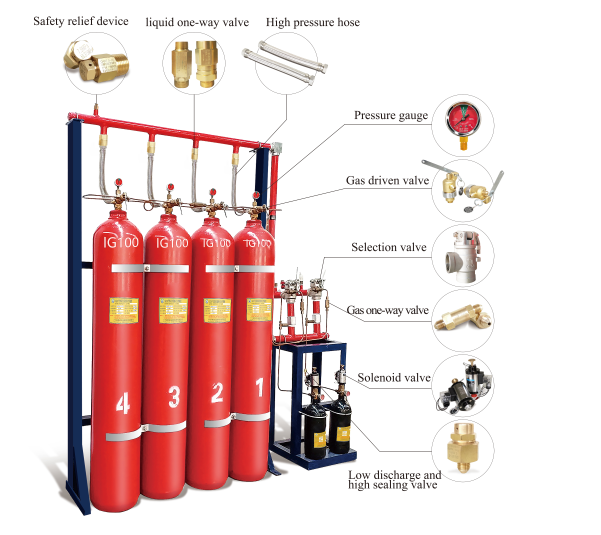

Overview of the Composition of IG100 Gas Fire Extinguishing System

The IG100 nitrogen fire extinguishing system uses pure nitrogen gas sourced entirely from the atmosphere as the extinguishing agent. IG100 (nitrogen fire extinguishing agent) is the main component of air, with zero ozone depletion potential, zero global warming potential, zero atmospheric retention time, and no adverse effects on the environment

IG100 nitrogen is colorless, odorless, and non-toxic. It is not only harmless to the human body, but also does not produce any chemical substances during the fire extinguishing process, which will not cause secondary pollution to the equipment. There is no atomization phenomenon during spraying, which does not affect the visibility and ensures the orderly and safe evacuation of personnel.

The relative gravity of IG100 to air is 0.97, which enables it to maintain a constant fire extinguishing concentration after release within the protected area, thereby ensuring fire extinguishing effectiveness and effectively preventing reignition.

Main technical parameters of IG100 gas fire extinguishing system

Product Analysis of IG100 Gas Fire Extinguishing System

FireTec IG100 application

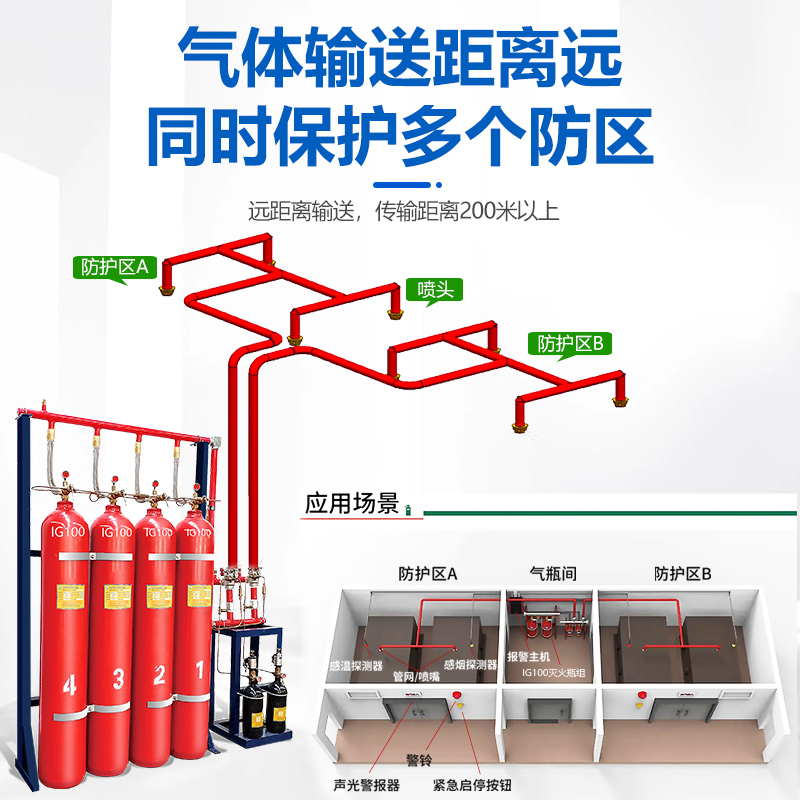

The FireTec IG100 nitrogen fire extinguishing system can be widely used in important places that require rapid response to fires, protect areas with operators, deal with sudden fires, and are sensitive to chemical reactions, effectively protecting personnel and property safety.

     The FireTec IG100 nitrogen fire extinguishing system uses pure nitrogen gas sourced entirely from the atmosphere as the extinguishing agent. IG100 (nitrogen fire extinguishing agent) is the main component of air, with zero ozone depletion potential, zero global warming potential, zero atmospheric retention time, and no adverse effects on the environment. IG100 nitrogen is colorless, odorless, and non-toxic. It is not only harmless to the human body, but also does not produce any chemical substances during the fire extinguishing process, which will not cause secondary pollution to the equipment. There is no atomization phenomenon during spraying, which does not affect the visibility and ensures the orderly and safe evacuation of personnel. The relative gravity of IG100 to air is 0.97, which enables it to maintain a constant fire extinguishing concentration after release within the protected area, thereby ensuring fire extinguishing effectiveness and effectively preventing reignition.

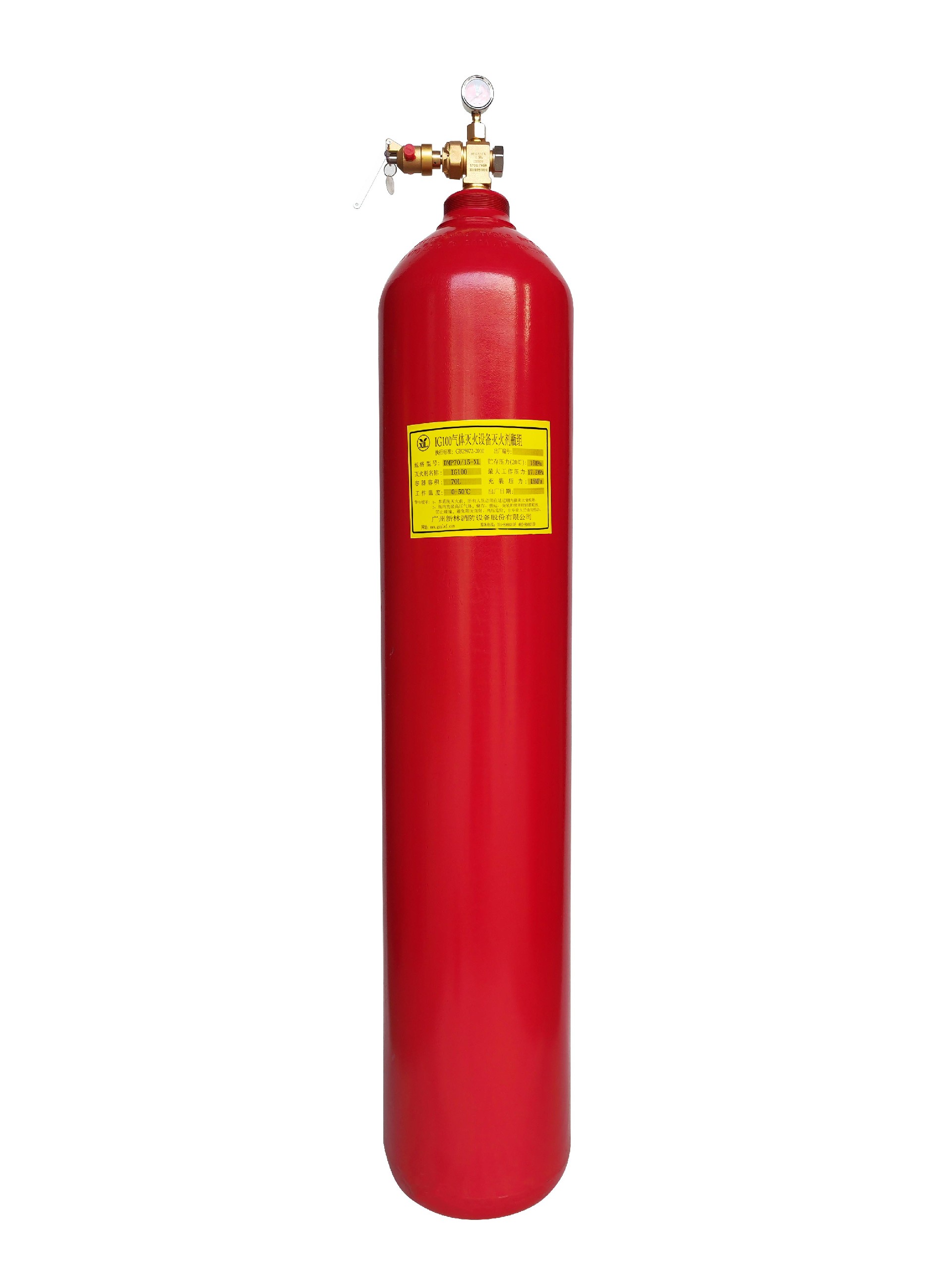

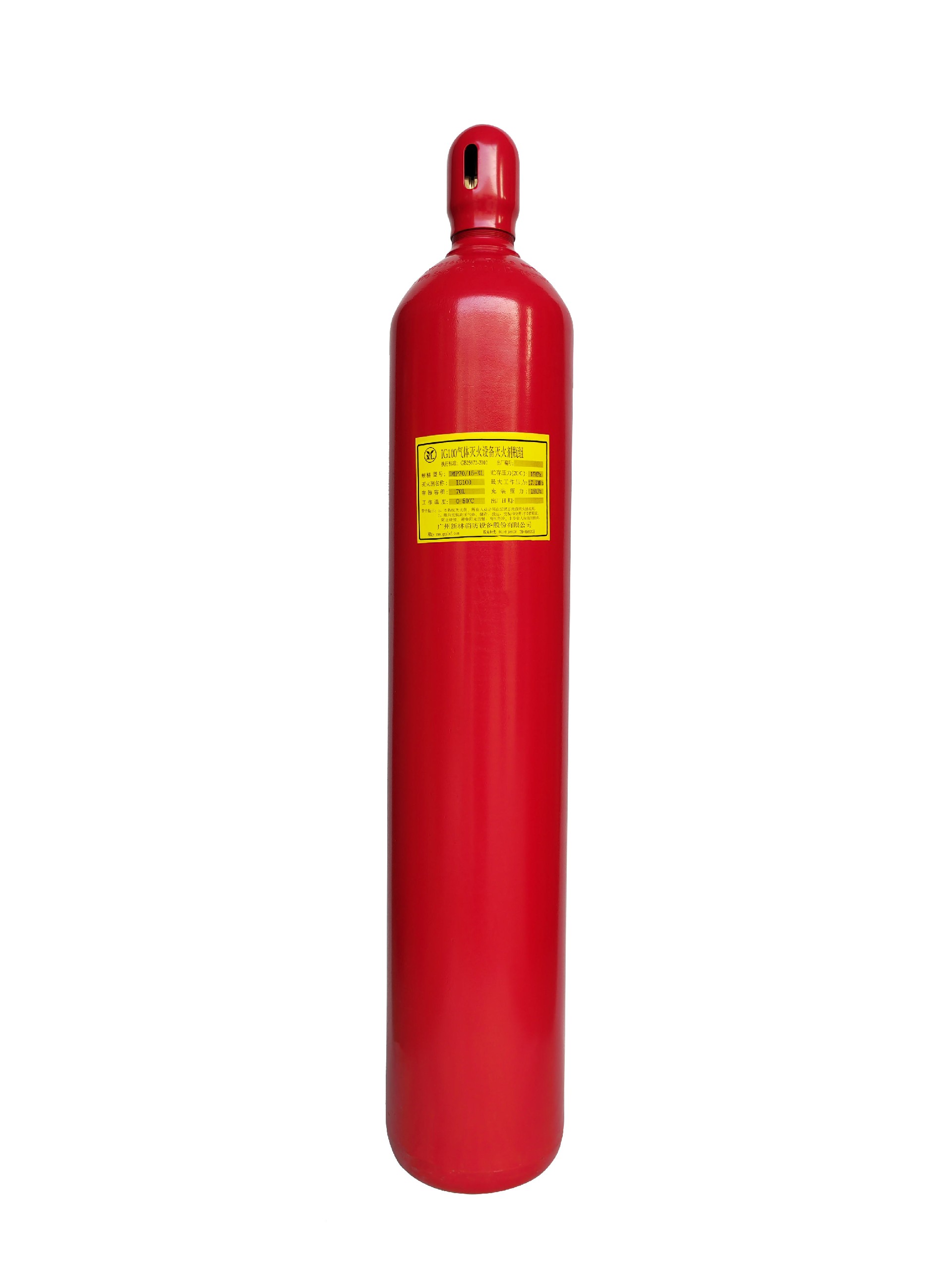

The FireTec IG100 nitrogen fire extinguishing system uses high-pressure seamless steel cylinders with a storage pressure of 20/30 MPa, which significantly reduces the number of containers in engineering applications. Equipped with the world's first external constant pressure reducing device, the outlet pressure of the container cylinder is constantly controlled at 6 MPa, reducing pressure damage to subsequent components, personnel and equipment in the protected area, and building structures. Therefore, relatively low-pressure pipelines can be used, effectively reducing the overall cost of the system. The advantages of IG100 in environmental protection, safety, and efficient fire extinguishing are obvious. The use of nitrogen, which accounts for 78% of the total atmosphere, as a fire extinguishing agent has gained increasing public awareness and attention. It has become the mainstream fire extinguishing agent choice for gas fire extinguishing systems in countries and regions such as Europe, America, and Japan.

Safety - Protecting Life

IG100 is composed of 100% nitrogen, which can dilute the concentration of toxic substances in the air during or after the fire extinguishing agent spraying process. Scientific research has shown that in such an environment, with on-site personnel in the protected area, the human body will automatically slow down the respiratory rate and reduce the inhalation of harmful substances.

The FireTec IG100 nitrogen fire extinguishing system is specially equipped with an external constant pressure reducing device for the fire extinguishing agent bottle group, which ensures a constant spraying pressure and does not cause airflow pressure damage to on-site equipment and stranded personnel. At the same time, the release of nitrogen does not produce any chemical substances under high temperature conditions, and there is no atomization reaction during spraying, which does not affect the line of sight, making it convenient for personnel to evacuate safely and calmly.

Security - Protecting Property

The FireTec IG100 nitrogen fire extinguishing system is widely used and is an ideal choice for protecting your various important equipment and property.

N does not produce condensation and does not cause damage to equipment due to sudden temperature changes

N does not decompose and produce any substances when exposed to high temperatures or fire sources

N has good electrical insulation performance

N is very suitable for protecting Class E live fires and high-value irreplaceable equipment

Suitable for A, B, C types of wood, fabric, paper and other surface fires, as well as gas and liquid or meltable solid material fires

FireTec IG100 System Design

The FireTec IG100 nitrogen fire extinguishing system is designed to provide you with high-quality and reliable fire extinguishing solutions. Developed in accordance with relevant standards of the International Organization for Standardization (ISO) and the National Fire Protection Association (NFPA), it has passed the Chinese national standard GB25972-2010 "Gas Fire Extinguishing Systems and Components" testing and has been certified by the German Professional Safety Association (VDS).

Performance characteristics:

① No condensation, no damage to equipment caused by sudden temperature changes;

② Does not decompose and produce any substances when exposed to high temperatures or fire sources;

③ Has good electrical insulation performance;

④ Very suitable for protecting Class E live fires and high-value irreplaceable equipment;

⑤ Suitable for surface fires caused by Class A, B, C wood, fabric, paper, as well as fires caused by gases, liquids, or melted solid materials;

Regarding stress explanation:

The necessity of the existence of two models, 15MPA and 20MPA

The IG541 bottle set typically uses a pressure of 15MPA, but the disadvantage is that it is filled with

The dosage is small, requiring a relatively large amount of bottles and high cost

The 20MPA high-pressure bottle group has a relatively large amount of medication filling, and the bottle group used

Less, lower cost and space occupation
